PODSTAWOWE INFORMACJE TECHNICZNE :

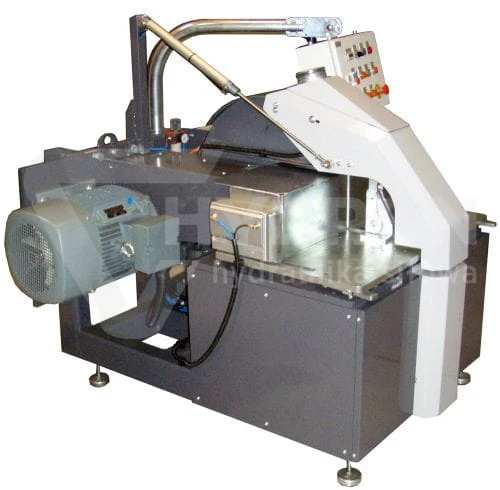

Przecinarka przemysłowa do 6" BIGCUT
BigCut 25-125
The BigCut is a semi automatic heavy duty cutting machine designed to cut even the toughest hoses. It has a semi automatic hood protection, adjustable feeding- and prebend-system and an integrated cooling system for best cutting result. It is prepared with a smoke evacuation connection, a 15kW* motor and a large Ø600 mm cutting blade to ensure cutting hoses with maximum outer diameter 180 mm.
TECHNICAL DATA
Hose
Capacity - steek wire: 1" - 6"
Hose
Capacity 10 layers: 1" - 3 1/2"
Max.
hose diameter OD: 180 mm
Motor: 15kW
Voltage: 400V(480)/27,1A/50Hz
Diameter (blade) External: 600 mm
Diameter (blade) Internal: 80 mm
Connection to smoke evacuation
system: 100 mm
Colour: Light
Grey
DIMENSIONS
Length: 1430
mm
Depth: 1250 mm
Height: 1370
mm
Weight: 790
Kg
DESIGNATION
BigCut
25-125: 9010-30-00
SPARE PARTS
Cutting
blade HSM 600x4x80 Toothed: 9005-02-03
