PODSTAWOWE INFORMACJE TECHNICZNE :

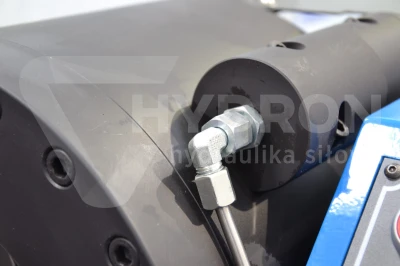

Zakuwarka do węży P51D 3"4SP sterowanie cyfrowe
Zakuwarka do węży P51D 3"4SP sterowanie cyfrowe

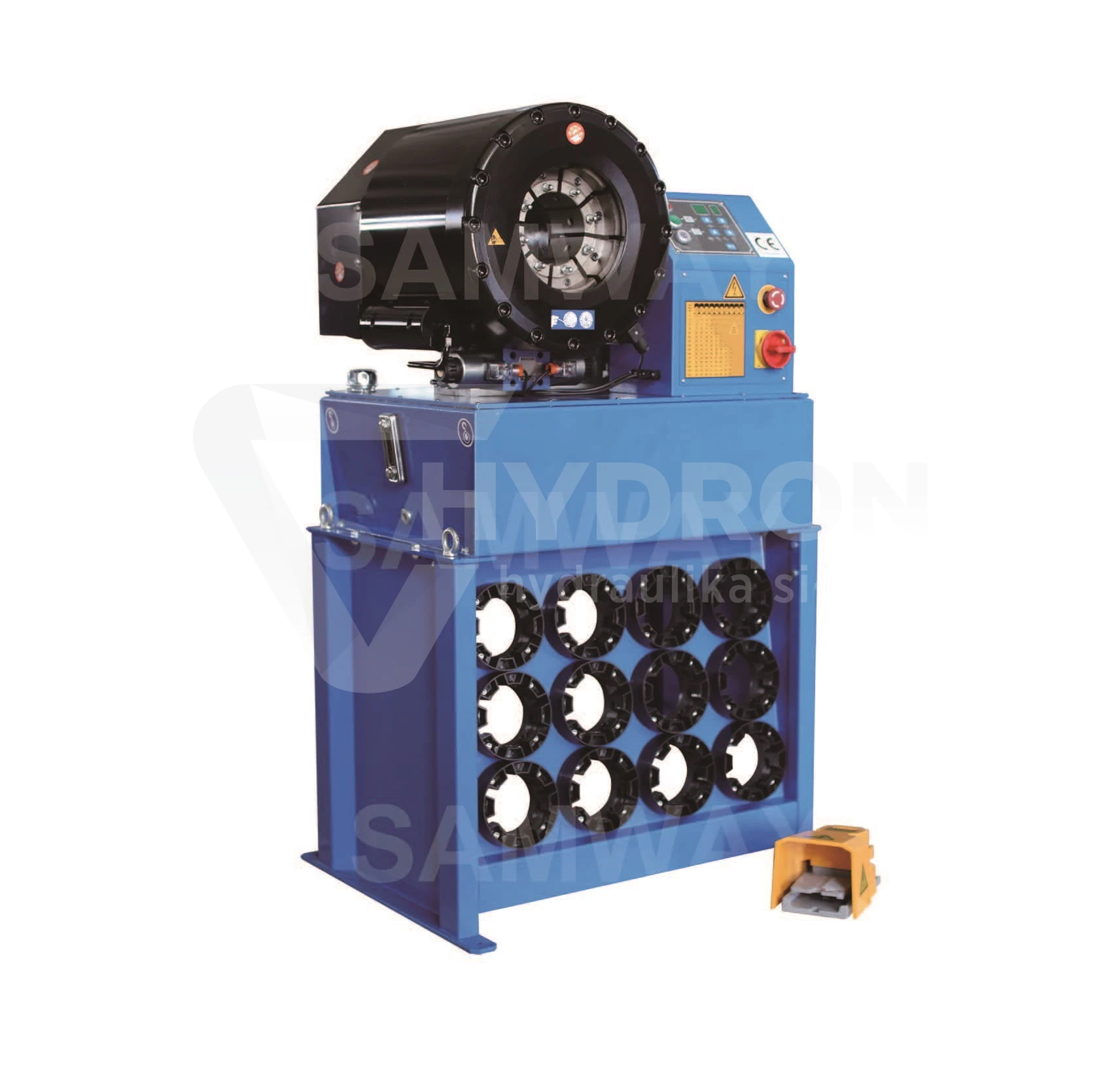

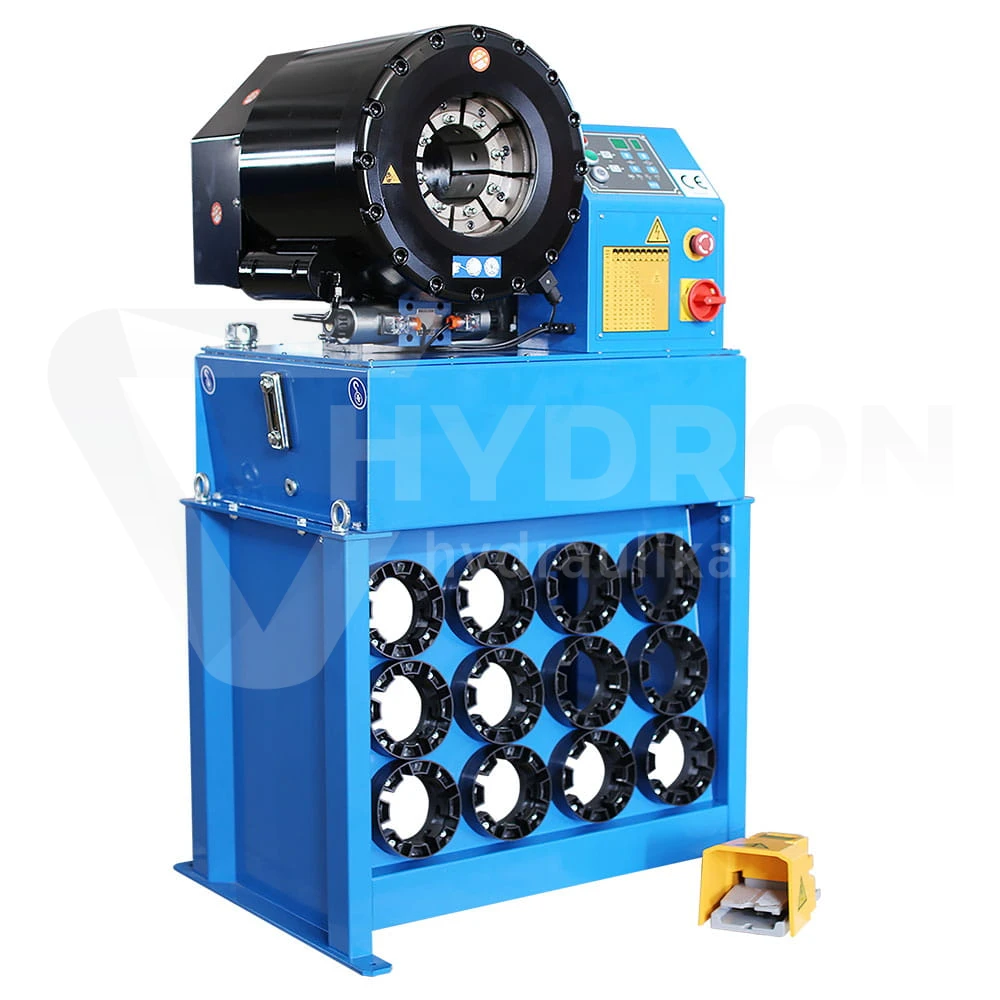

SAMWAY P51D 4’’ Hose Crimping Machine.
The Heavy Duty 4’’ Hose Crimping Machine for all hydraulic hose up to 4’’ or industrial hose up to 4’’. Digital Control makes the hydraulic hose assembly easier more simple and precision. Samway P51D come with the quick change tool and die rack complete with die sets for hydraulic hose. Optional die sets for the Industrial Hose. Samway P51D is an precision workshop hose crimping machine for high standard high quality hydraulic hose assembly and industrial hose up to 4’’. Please contact SAMWAY for more details of Samway Hose Crimping Machines.

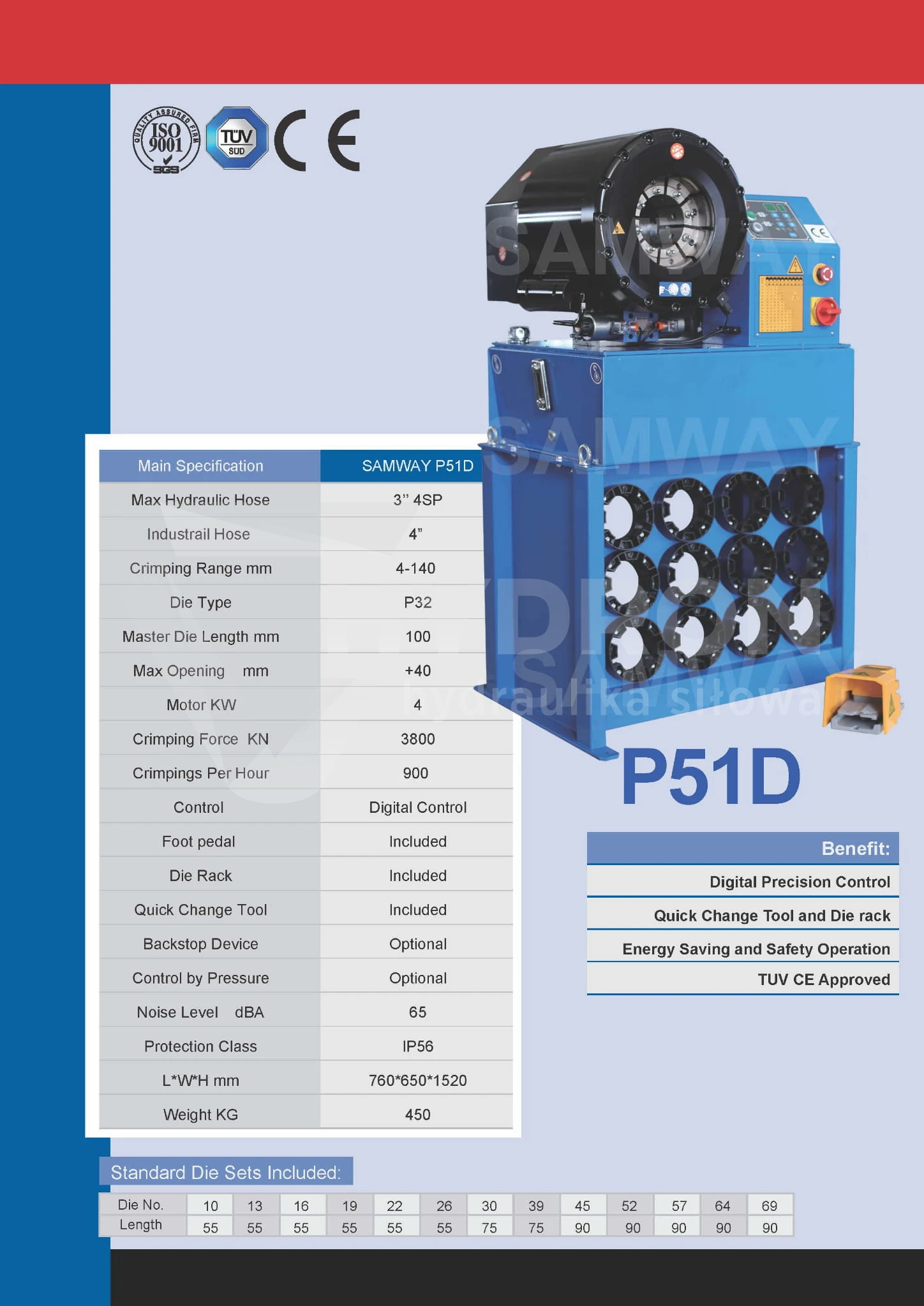

Specification:
Main Specification |
SAMWAY P51D |
Max Hydraulic Hose |
3’’ 4SP |
Industrail Hose |
4” |
Crimping Range mm |
4-140 |
Die Type |
P32 |
Master Die Length mm |
100 |
Max Opening mm |
+40 |
Motor KW |
4 |
Crimping Force KN |
3800 |
Crimpings Per Hour |
900 |
Control |
Digital Control |
Foot pedal |
Included |
Die Rack |
Included |
Quick Change Tool |
Included |
Backstop Device |
Optional |
Control by Pressure |
Optional |
Noise Level dBA |
65 |
Protection Class |
IP56 |
L*W*H mm |
760*650*1520 |
Weight KG |
450 |
Standard Die Sets Included:
Die No. |
10 |
13 |
16 |
19 |
22 |
26 |
30 |
39 |
45 |
52 |
57 |
64 |
69 |
Length |
55 |
55 |
55 |
55 |
55 |
55 |
75 |
75 |
90 |
90 |
90 |
90 |
90 |
